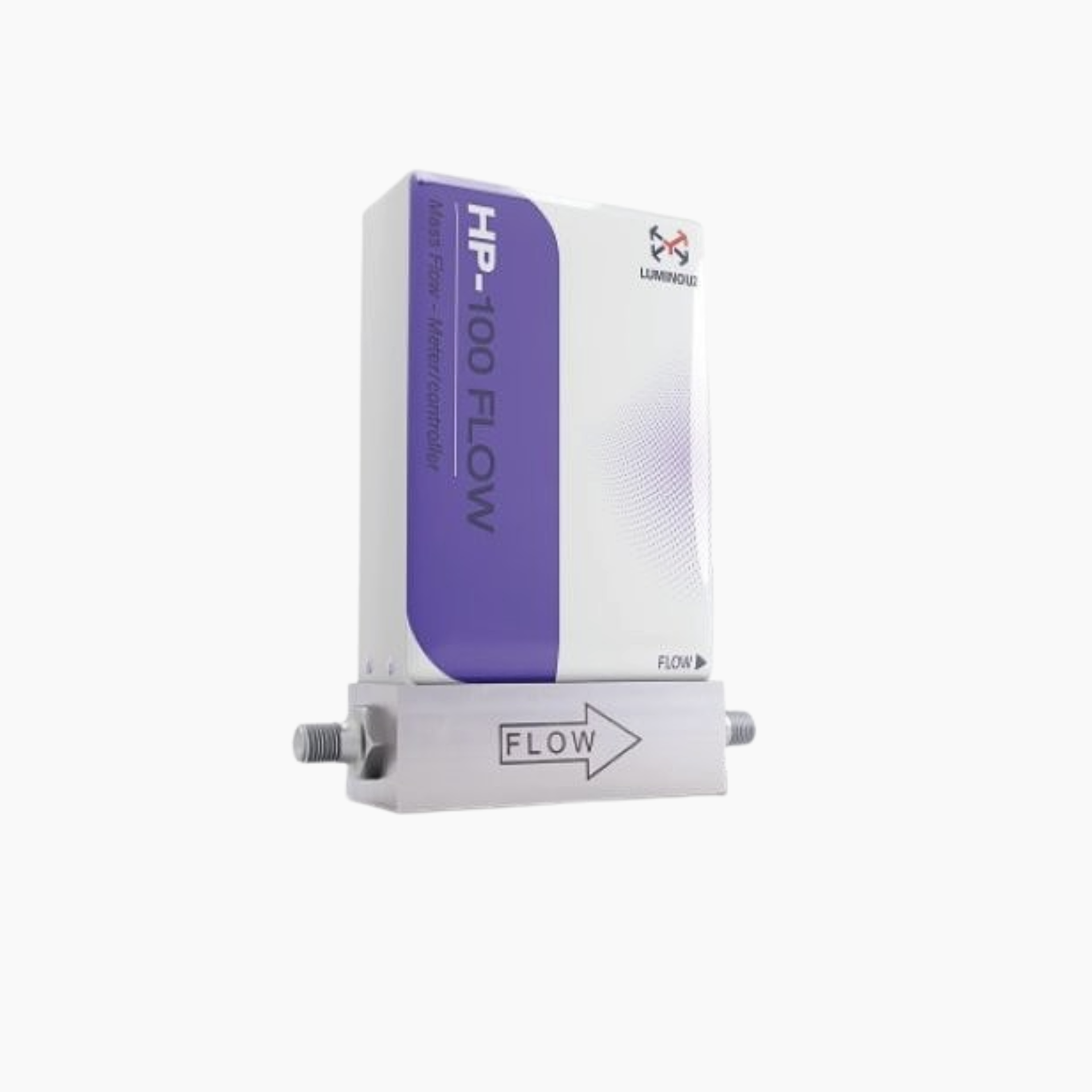

HP-100 Flow Meter and Controller
Mass Flow Controller and Meters
- Full Scale Flow Range(3sccm-1000slm)
- Maximum working pressure up to 1500 Psi
- High precision measurement and control
- High pressure differential adaptability
- Unaffected by temperature and pressure
- Quick response, high repeatability
- Digital communication, compatible with analog communication
- Optional real-time display with LCD screen
New Generation Thermal Gas Sensor Design
The influence of temperature and pressure changes is small, accurate temperature and pressure correction, high linearity, can provide excellent signal-to-noise ratio performance to improve measurement and control accuracy long-term zero point stability.
Super V Dynamic Characteristics
The new microelectronic chip energy-saving technology and innovative multi-level control loop bring super dynamic characteristics. Control performance is adaptive, allowing quick response to setpoint changes without overshoot. Welcome to inquiry in Luminouz.
Wide Flow Range and High Pressure Adaptability
The flow range can be from 3sccm all the way to 1000 SLM, the working pressure is up to 500 psi/100 bar, and the flow measurement and control can be performed under the extremely high pressure difference between upstream and downstream from 6 bar to 70 bar.
Description of HP-100 Series Mass Flow Controller and Meters
HP-100 series is a new generation of MFC/MFM(Mass Flow Controller/Mass Flow Metes) with newly designed.It adopts many world-leading fluid measurement and control technologies. On the basis of capillary thermal temperature difference sensor, it introduces advanced “Automatic temperature difference balancing technology” to ensure the extraordinary stability, linearity and dynamic response characteristics of the sensor. The substrate is made of 316L stainless steel, suitable for toxic and corrosive gases, the maximum working pressure can reach 1500 Psi, and the maximum flow rate can reach 1000 SLM. Newly designed digital measurement control circuit, multiple communication protocols for digital IO, compatible with analog communication, optional LCD version, convenient on-site operation display. The excellent performance of the HP-100 series is the best partner for high-quality applications.
| Flow Accuracy | ±0.8% R.D and±0.2% F.S; ±1% R.D and ±0.5% F.S(>100 SLM) |
| Repeatability | ±0.2% F.S |
| Control Range | 1~100% F.S |
| Response Time | <1s |
| Temperature Coefficient | Zero: <0.05% of F.S./℃. Span: <0.1% of S.P. /℃ |
| Electrical Interface | 9-Pin D-connector (Male) |
| Digital Communication | RS-485(Modbus Rtu protocol) |
| Analog Communication | 0~5 V / 4~20mA |
| Substrate Material | 316L stainless steel |
| Sealing Material | Fluorine rubber, EPDM rubber, nitrile rubber |
Aplication of HP-100 Series Mass Flow Controller and Meters
- Gas Control During Fiber Fabrication
- Bioreactor Gas Flow Control
- Catalyst Evaluation Equipment
- Gas Flow Control Applications in Analytical Instruments
