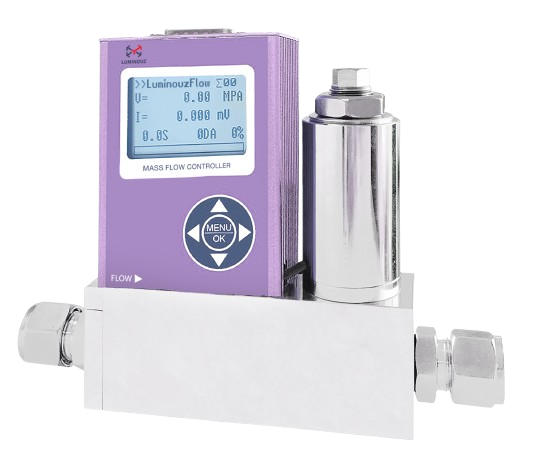

Pressure Controller LN10-500
Pressure Controller (Medium Range)
Product Applications
Applications: semiconductor process, gas and liquid chromatograph, steam pressure control in MOCVD process, gas pressure protection control in extrusion molding process, autoclave/reactor pressure control, etc.
Second, product application
The LN10 pressure controller can be equipped with an integrated control valve or a split control valve. It is a proportional solenoid control valve with ultra-fast and smooth control. We have different series of control valves for specific applications. Standard direct-acting valves are used for conventional applications and pilot valves are used for high flow rate applications.
Product Overview
The LN10 series pressure controller/gauge is a straight-through design with a measurement range from 100KPa to 10MPA (absolute and gauge). Differential pressure transmitters are also available. This series of instruments has high accuracy and good repeatability, and is divided into two types: front pressure control and back pressure control.
The LN10 series comes standard with a piezoelectric diaphragm pressure sensor and digital circuit board to provide high-precision, stable, and reliable pressure measurement and control. This basic digital PC board has all the basic functions you need for measurement and control. In addition to the standard RS485 output signal, the LN10 also provides analog I/O signals.
Product parameters
| Technical parameters | Accuracy (including linearity and hysteresis) | ±1%F.S | |
| Pressure to range ratio | manometer | 1:50 | |
| repeatability | Pressure controllers | 1:20 | |
| Sensor response time | ≤0.1% | ||
| Control stability | ≤±0.05% F.S (Measurement condition: 1 L/min N2) | ||
| Operating temperature | -10~+70 | ||
| Temperature sensitivity | 0.1%FS/ | ||
| Leakage rate | 1×10-9 SCCS He | ||
| Bearing influence(90° variation) | <0.03 KPa (Absolute/Gauge Sensor) | ||
| <0.6 KPa (differential pressure sensor) | |||
| Warm-up time | Negligible | ||
| Mechanical components | Material | stainless steel | |
| Process connections | G3/8" | ||
| Sealing material | Viton/Nitrile/Neoprene/Others | ||
| Ingress Protection (Housing) | IP40 | ||
| Electrical characteristics | power supply | 15~24Vdc | |
| Digital output | RS485/RS232 | ||
| Electrical connections | DB15 | ||
LN10-500 Pressure Controller (Medium Range:300KPa~500KPa)
Product selection
| Serial number | LN10 |
| Product type | [C] Pressure controller [M] Manometer |
| Type of pressure | [A] absolute pressure [G] gauge pressure |
| Withstand voltage range | [M] 3MPa [Z] 10MPa (manometer only) |
| On-site display of the condition | [N] Without LCD [X] With LCD display |
| Pressure range | [300K] 300KPa [500K] 500KPa |
| The medium to be measured | See the density reference table for details |
| Flow input signal | [A1] 0~5VDC [A2] 4~20mA [A3] 1~5VDC |
| Output signal | [B1] 0~5VDC [B2] 4~20mA [B3] 1~5VDC |
| Supply voltage | [5] ±15VDC [4] 24VDC |
| Methods of Communication | [8] RS485 [2]RS232 |
| Sealing material | [V] fluoroelastomer [T] Nitrile rubber [N] neoprene [Y] others |
| Use connectors | [A] φ3 [B] φ6 [F] 1/8" [G] 1/4" [Y] Others Contact the manufacturer |
| Example of model selection | LN10 M A M N 300K 007 A1 B1 5 8 V E |
